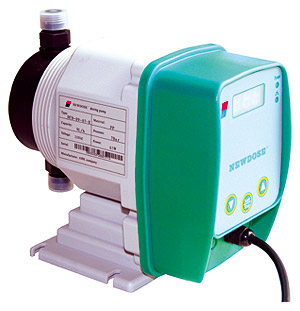

    DFD Series electrical diaphragm metering pump

    Anticorrosive plastic casing

    PTFE diaphragm

    Protection class: IP65

    Pump head: PP, PVC, PTFE

    Suction and delivery valves: with two balls each one

    Manual control the stroke frequency from 10-100%, LED display the normal frequency (at running or stop).

    Stand power supply: 220vac, 50Hz single phase



    Specification of the DFD Series Pumps

    Type

    Flow/Capacity

    LPH

    Max Pressure

    Bar

    Frenquency

    times/min

    Suction Height

    m

    Net weight

    Kg

    Power
    w
    Electrical Source
    DFD-02-07-LM  2 7  120   2

    3.5

    30

    110/220V  50/60HZ

    DFD-02-16-X 2 16  120   2 3.5 65 110/220V  50/60HZ
    DFD-03-07-LM 3 7  120   2 3.5 30 110/220V  50/60HZ
    DFD-06-05-LM 6 5   140   2 3.5 30 110/220V  50/60HZ
    DFD-06-07-X 6 7   120   2 3.8 65 110/220V  50/60HZ
    DFD-09-03-LM 9 2 120 2 3.5 30 110/220V  50/60HZ
    DFD-09-07-X 9 7 120 2 3.8 65 110/220V  50/60HZ
    DFD-12-07-X 12 7  120  2 3.8 65 110/220V  50/60HZ
    DFD-15-03-X 15 3 120 2 3.8 65 110/220V  50/60HZ
    DFD-20-03-X 20 3 160 2 3.8 65 110/220V  50/60HZ
    DFD-30-03-X 30 3 160 2 4.5 65 110/220V  50/60HZ
    DFD-50-05-X 50 5 240 2 4.5 65 110/220V  50/60HZ
